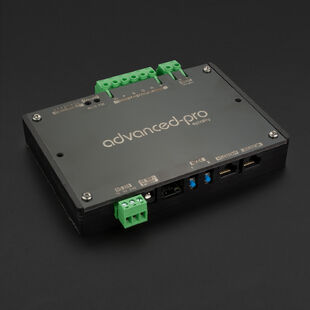

RGB-W RS-232 LED Controller
The RS-232 controller is an expandable LED controller that interfaces with controllers using RS-232 serial commands. The RS-232 comes ready to control single color, RGB, and RGB-W lighting fixtures and includes built in color changing programs.
Thanks to its internal RGB-W 4 Channel Interface it's now very easy to control any color changing LED lights through RS-232 Interface. The controller includes a host of different features for expanding the system, from using LED lights, to controlling incandescent lights, to utilizing control from iPads and using relays to control the RS-232 controller.
The lightweight 3D printed composite body features a metal cover and is easy to use with simple screw down terminals and holes for mounting screws.
Integrates perfectly with home lighting automation systems:
- Lutron
- Control 4
-
Crestron
Main Product Functions:
- Directly Use Software with RS-232 Connectors
- Control Single Colors, RGB and RGB-W Lights
- Control LED direct from 2-way RS-232 Serial Commands
- 4 Channels
- Built In Color Changing Light Scenes
- Expandable for Use with iPads and Relays
- Reverse Polarity Protection
- Works with Magnetic Transformers
- Built In Memory Remembers Last Setting
Technical details:
- PWM 480 Hz for Smooth Dimming
- Input 12-24V DC
- Output 12-24V DC
- 4 Channels
- Max 7A@12V DC per channel
- Max 7A@24V DC per channel
Warning: This product requires a 12-24V DC power supply to operate (not included).
Input Voltage | 12-24V DC | |
Max Power | 672W@24V DC, 336W@12V DC | |
Max Amp | 7A per Channel | |
Warranty | 3 Years | |
Weight | 0.7 Lbs | |
Dimensions | L:6.1", W:4.2", H:1" | |
IP Rating | IP20 | |
Control System | RGBW and RS-232 | |
Channels | 4 | |
RGB Channels | 3 | |
Product Color | Black | |
Product Material | Composite Housing | |
Working Temperature | -13º to 158º F | |
Certificates | CE, RoHS |
