White LumaBlaze High Power LED Bars 24V DC 20W 6000K

The Daylight White LumaBlaze LED Light Bars are the most powerful LED Light Bars on the market. Bringing unrivaled amounts of intensely bright light never thought possible from such a compact and low profile LED Bar.

White LumaBlaze LED Bars are fully modular with cut points every 4 inches. Each White LumaBlaze is made of 2mm thick aluminum printed circuit board and includes 30 High power 5730 LEDs. Each White LumaBlaze LED bar produces an incredible 1750 Lumens per 20 inch unit using just 20W of power.

Each White LumaBlaze includes 2 WAGO Push down connectors on each side making each bar easy to connect to any 24 DC power source.

The White LumaBlaze is fully modular and up to 10 bars can be connected together in a linear format using the easy to use push down connectors. The White LumaBlaze is fully dimmable with any of our PWM Dimmers.

Also White LumaBlaze LED bars can be easily installed on any surface by using the included double sided thermal tape under each unit.

The White LumaBlaze LED Bars are great for installation in our Aluminum Channels, and is perfect for use in vending machines, in and under cabinets, under the counter lighting installations to produce amazing brightness levels, and when we say an amazing brightness level, we mean the highest most amazing Brightness Level Possible.

The White LumaBlaze is also perfect for task lighting, not only in the kitchen or entertainment room, but also above the bench in the hobby room and in the garage, but also in pantries and closets for bright useable lighting.

With a rigid 2mm Aluminum Printed circuit board, the LED bars are capable of dissipating any minimal heat generated by the 0.7W LEDs, thus improving and maximizing the lifetime of the product.

Available in 3 different color temperatures: Warm White (3000K), Daylight White (4000K) and White (6000K) these LED bars bring the next generation of LED Brightness.

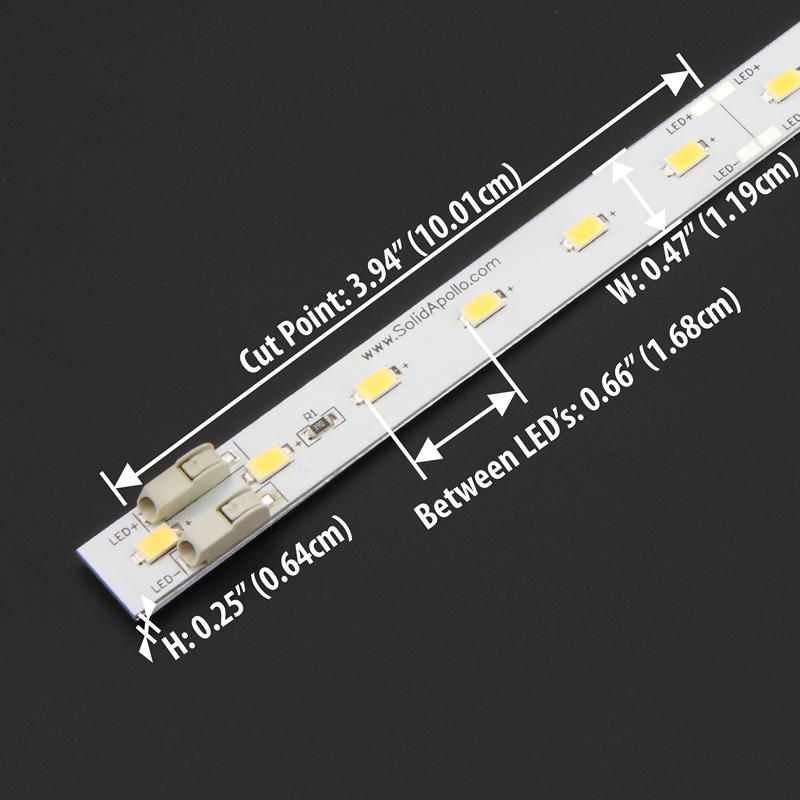

The White LumaBlaze LED bars can be easily cut in the field every 4” with a pair of tin snips or nippers. It’s easy to use the leftover White LumaBlaze pieces by soldering cables to the solder discs located at every cut point.

We strongly recommend that you install this product either inside our LED Lighting profiles or any other metal surface that can conduct heat. The reason is that we punch so much brightness through these bad boys that extra heat dissipation is strongly recommended. Just place the White LumaBlaze on any metal surface such as our LED channels or any strip of metal with at least 1/8” of thickness. This will assure that you will maximize the full 50,000 hour lifetime of the White LumaBlaze.

Features:

• White 6000K
• 20W 24V DC
• Out of This World Brightness (1750 Lumens/unit)
• Fully Dimmable
• Easily Cuttable Every 4”
• Aluminum Printed Circuit board (2mm)
• Easy to Connect and Interconnect with Built-In Push Down Connectors
• Quickly Connect Up to 10 LumaBlaze LED Bars Together
• Included Double Sided Thermal Tape for Easy Installation

Specifications:

• 2mm Thick Aluminum PCB
• 24V DC Operation
• 20W per 20 Inch Bar
• 1750 Lumens/Unit
• 30 X 0.5W 5730 High Power LEDs
• 2oz Copper PCB
• 9 amp Push Down Wago connectors
• Thermal Double Sided tape

Warning: This product is not compatible with dimmable transformers.
