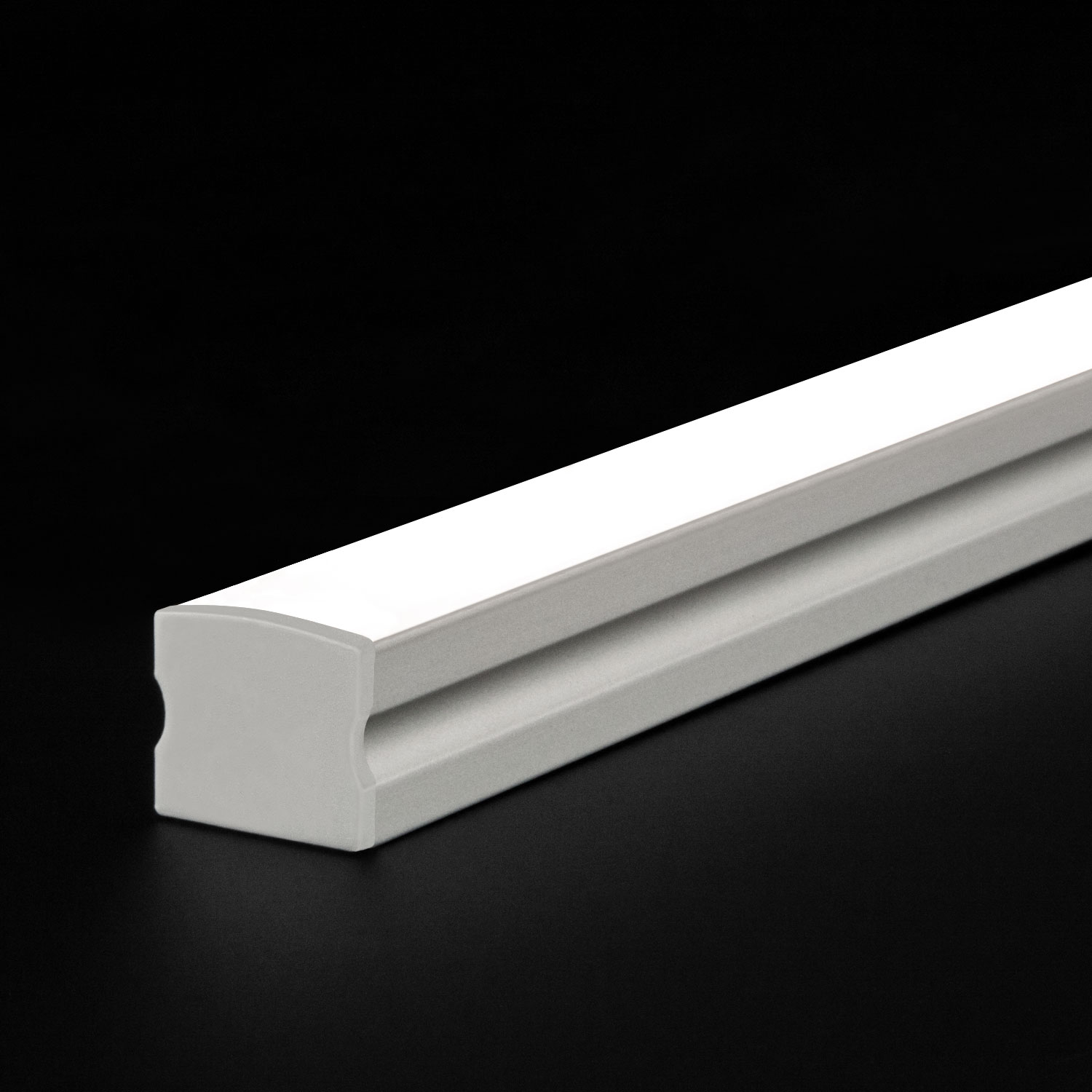

Shinobu LED Linear Fixture High CRI

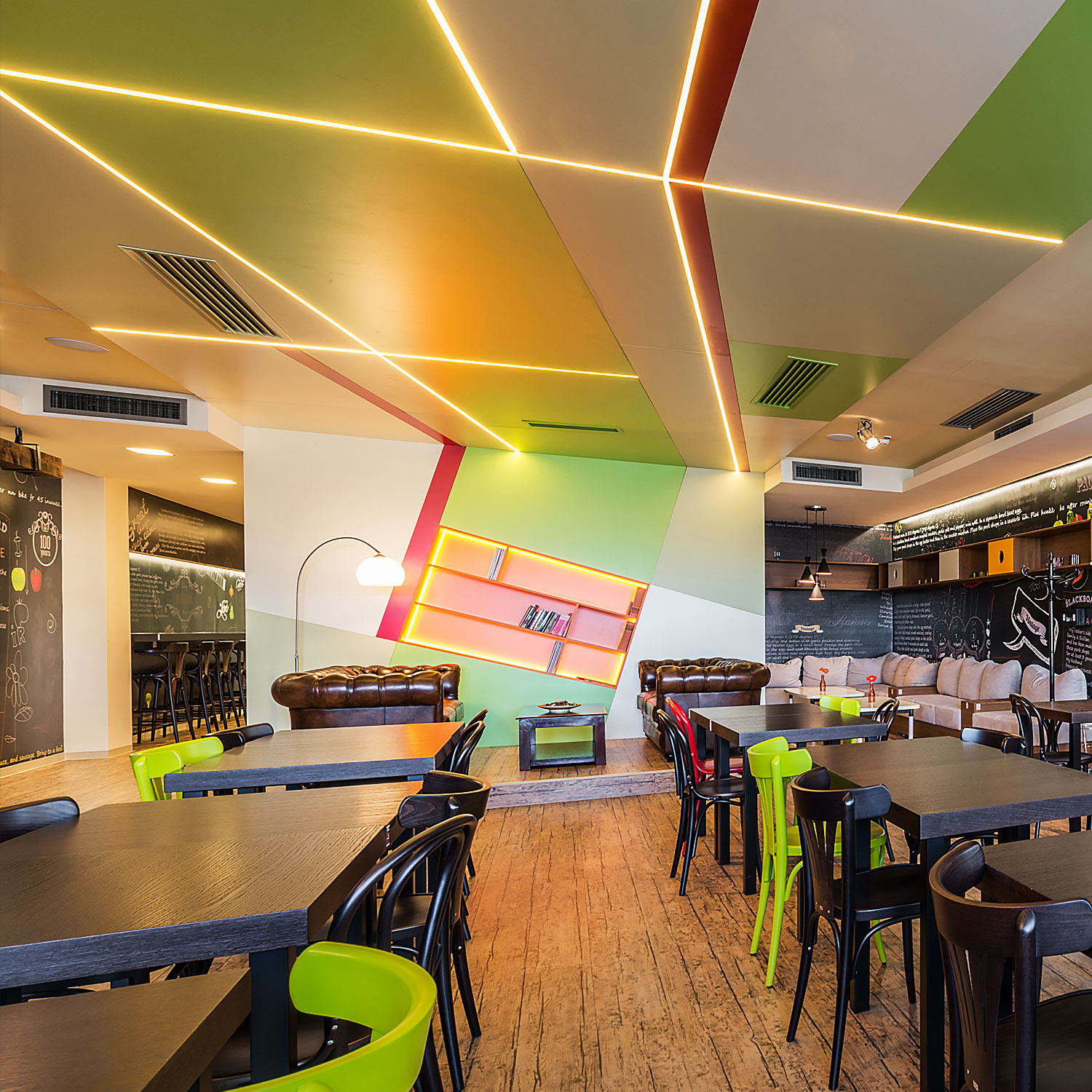

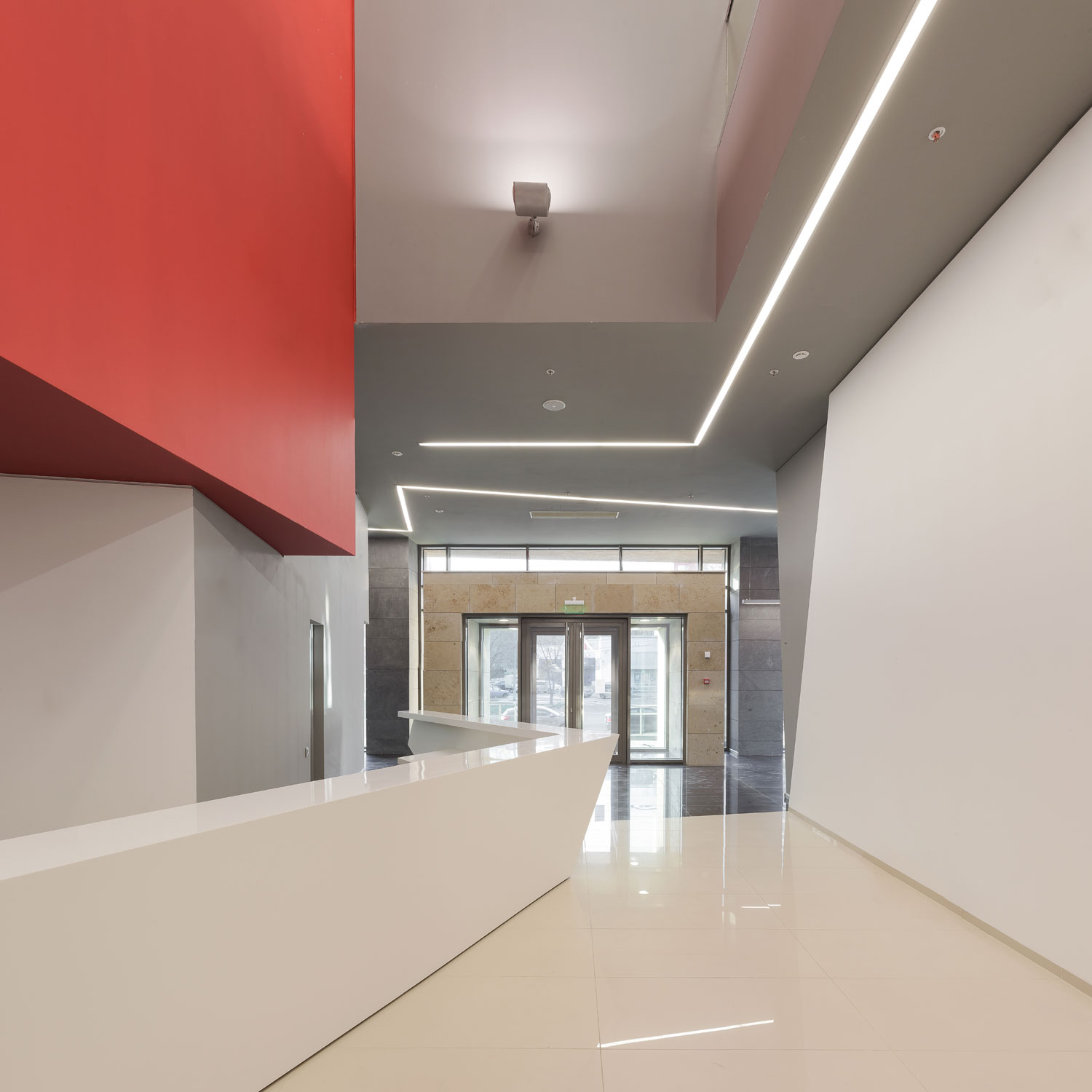

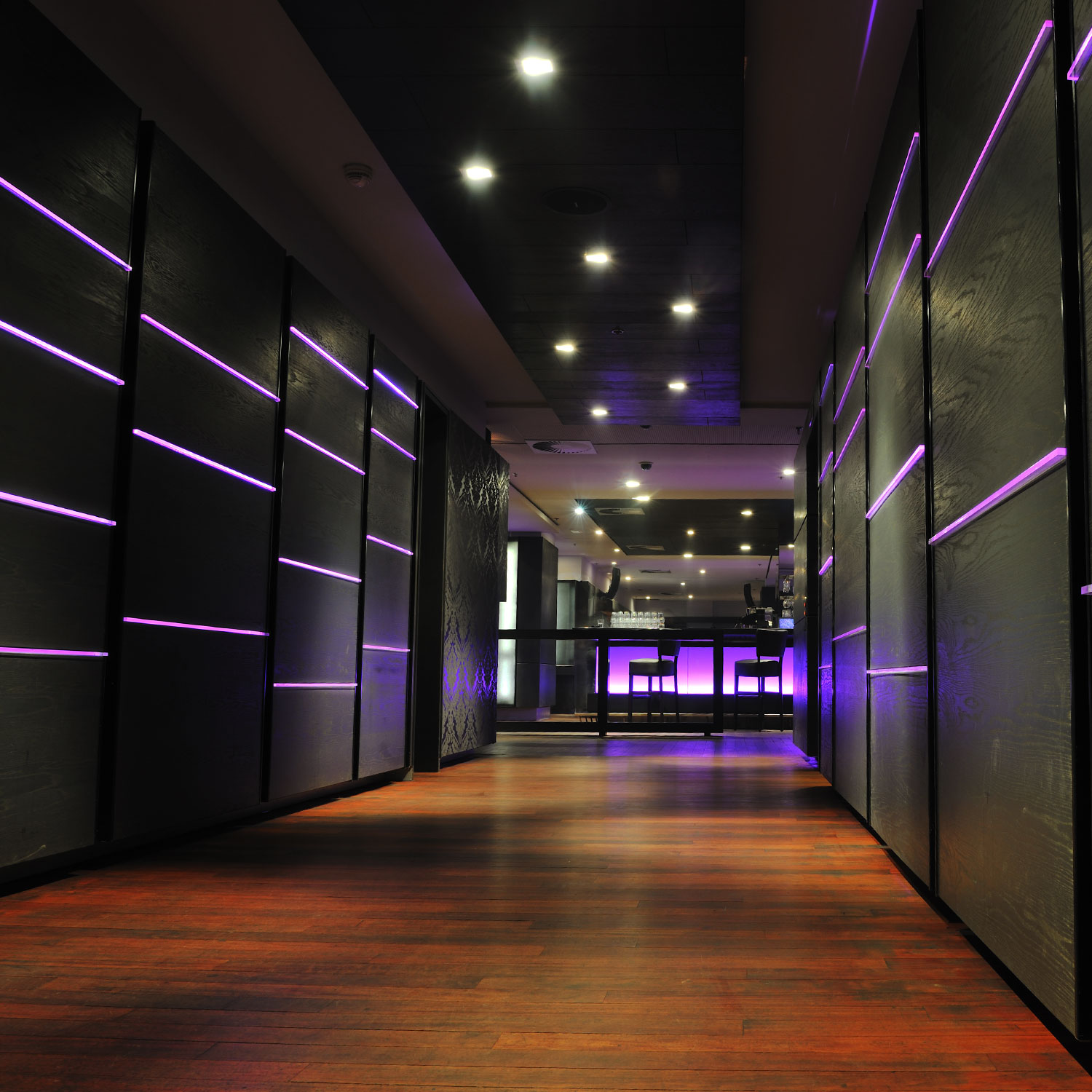

Shinobu LED Linear Lighting High CRI fixtures are the perfect solution to create accent lighting in a multitude of environments from trendy office buildings to retail environments and commercial settings. Each unit is proudly manufactured in Seattle, WA by Solid Apollo LED Inc. using the highest quality materials and electronic components.

Solid Apollo’s Shinobu LED Linear High CRI Lighting system is a LED Linear fixture manufactured to order. We provide any lengths between 6 and 78 inches in 1 inch increments. We provide a wide array of color temperatures and brightness levels.

Each unit can have power leads at one side of the fixture or in both sides, so multiple units can be connected seamlessly. You can also choose between Frosted and Semifrosted diffusers, giving you great flexibility when lighting projects.

You can also choose to have the power cables coming through the side of the fixture or the bottom of the fixture if you want no cables visible coming out of the LED fixture when installed in a surface. Mounting brackets are included with each order. Longer units get more brackets in order to hold the unit effectively.

This fixture is an architectural grade construction with an LED strip boasting a color rendering index (CRI) of 96+ making it perfect for any environment where color rendition is important.

Main Features:

Manufactured to Order up to 78 inches:
We can manufacture any length from 6 inches to 78 inches. This enables interior designers and customers to correctly create the perfect ambiance. Other manufacturers only offer linear LED lighting systems in a very short list of sizes. Orders can take anywhere from 7 Days to 15 days to manufacture depending on current production times.

Complete Dotless Solution:
We provide fixtures that are dotless and don’t show LED dots achieved by using proprietary diffusing materials. Other manufacturers use cheap electronics that don’t perform as well.

Fully Dimmable:
All of our Linear Lighting Systems are fully dimmable.

ULTRA High CRI:
CRI is a measurement of the ability of a light source to accurately represent an object’s colors in comparison to natural light. 15 colors are measured on a scale of 0 to 100 with higher ratings showing surroundings and objects in more vivid and realistic colors. Traditional LEDs have CRI scores in the low 80s. Our High CRI fixtures boast averages of 96+. Even hard to render colors like vivid reds and deep blues are highly rated above 87 where other LED strips lack. High CRI strips are perfect for commercial and retail applications. Proper lighting with High CRI strips has been shown to have shown an increase in sales of two to twelve percent.

Fully Customizable:
Units can have a different diffuser with different capacities as well as different connection systems.

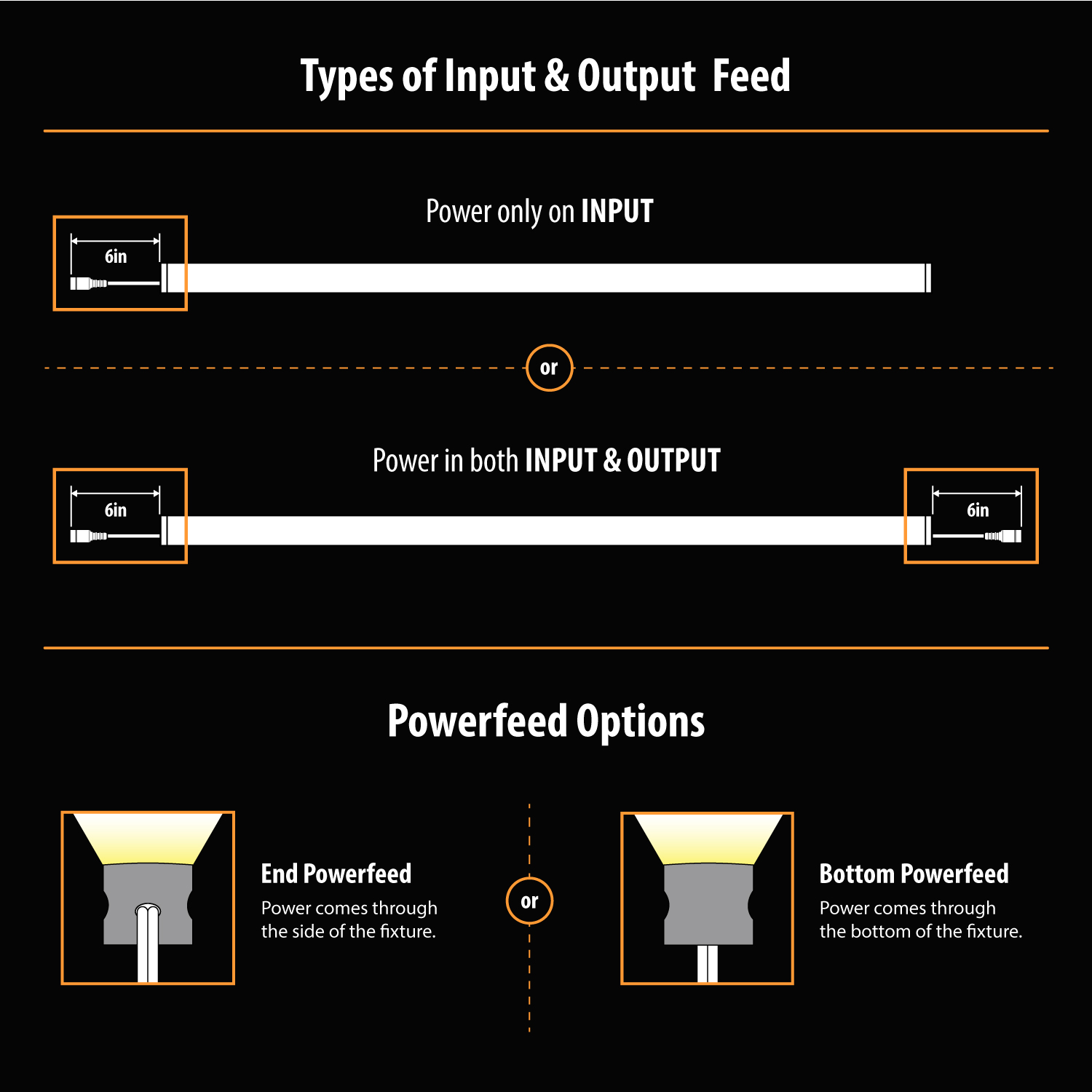

Power Leads:
You can select to have power leads in one side or two sides. If you are going to connect multiple units you can select to have power leads in both sides of the linear fixture.

Mounting Types:
We offer two mounting types: Brackets or Magnetic Mounting.  Magnetic Mounting is great for any surface that is made of ferrous metals, like retail shelves and displays. Normal Brackets are great when fixing to non-metal surfaces.

How to choose your required drivers:

Solid Apollo’s linear fixtures require a driver to work (not included). It’s easy to know what driver you will need with the following instructions:

1. Count how many total inches of fixtures you have in the same line. For example: If you purchase two fixtures of 60 inches each for one line, you will have a total of 120 inches.
2. Choose which type of driver you wish to have in your setup from the selection below. Use the length of your line from step one to determine which driver to select. For example: If we wanted a plug and play driver for the 120 inch line from step one, we’d pick option three from the first section, From 97 to 192 Inches: LED Power Supply 24V-DC-4A-96W.

Normal 24V DC Drivers with Plug and Play connectors:

1. From 0 to 48 inches of total length: LED Power Supply 24V-DC-1A-24W
2. From 49 to 96 inches of total length: LED Power Supply 24V-DC-2A-48W
3. From 97 to 192 inches of total length: LED Power Supply 24V-DC-4A-96W

24V DC Drivers with Hardwire installation:

1. From 0 to 120 inches of total length: Hard Wired LED Power Supply 24V-DC-60W
2. From 121 to 200 inches of total length: Hard Wired LED Power Supply 24V-DC-100W

Dimmable 24V DC Drivers:

1. From 0 to 100 inches of total length: Dimmable LED Transformer 50W 24V DC
2. From 101 to 190 inches of total length: Dimmable LED Transformer 96W 24V DC

If your installation requires larger drivers, give us a call and we will be happy to recommend the right product that fits your needs.

In a Nutshell:

• CRI 96+

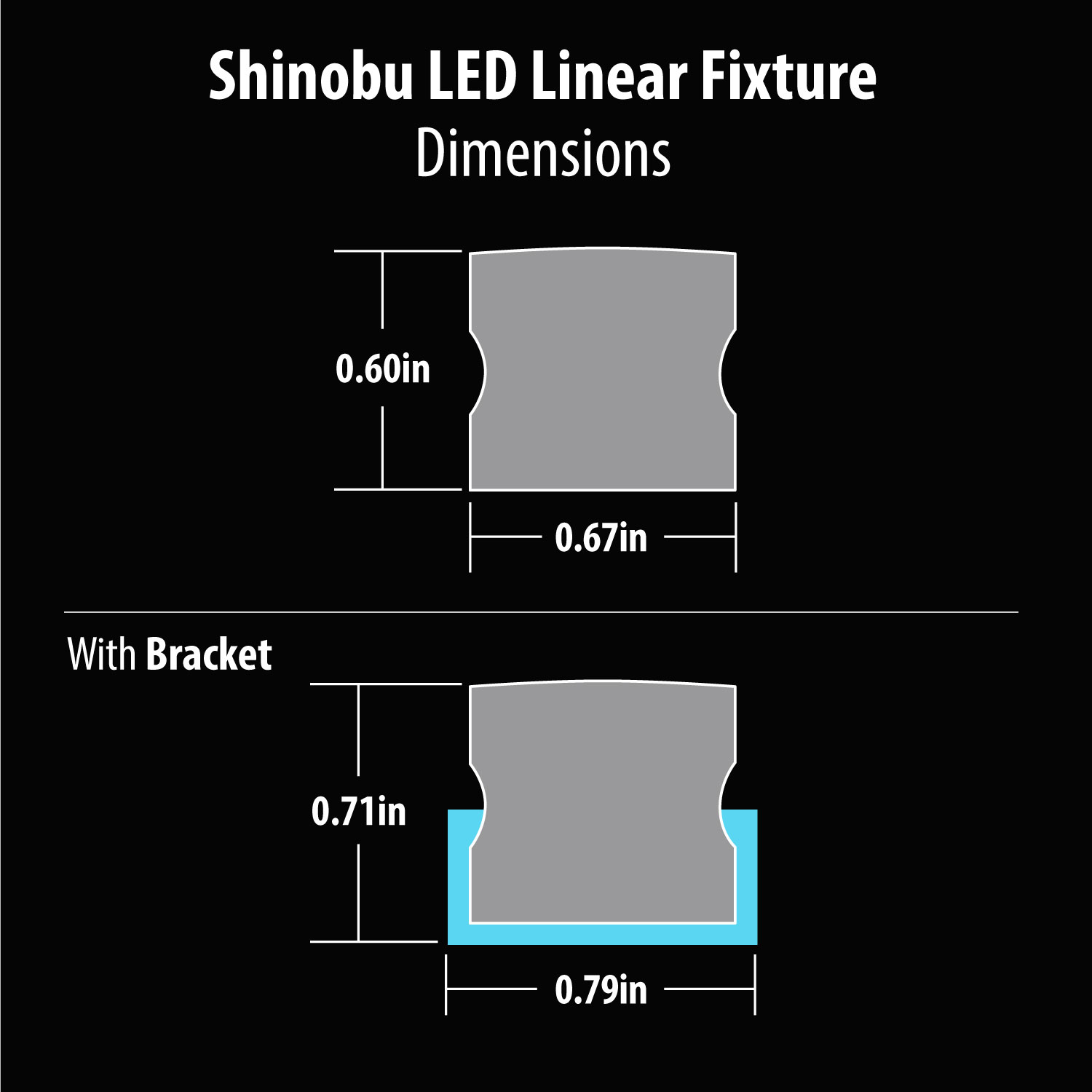

• 0.67in (W) x 0.60in (H)
• Up to 596 Lumens/ft
• Available from 6 to 78 Inch lengths (1 inch increments)
• Made to Order
• Manufactured in the USA
• Completely Dotless with Frosted Diffuser
• Fully Dimmable
• 5 Year Warranty
• Available in 2400K, 2700K, 3000K,
  3500K, 4000K, 5000K, and 6000K
• Up to 20ft Continuous Runs
• Strain Relief built into cables
• Easy to install
• Optional Magnetic Mounting
• Includes Mounting Brackets

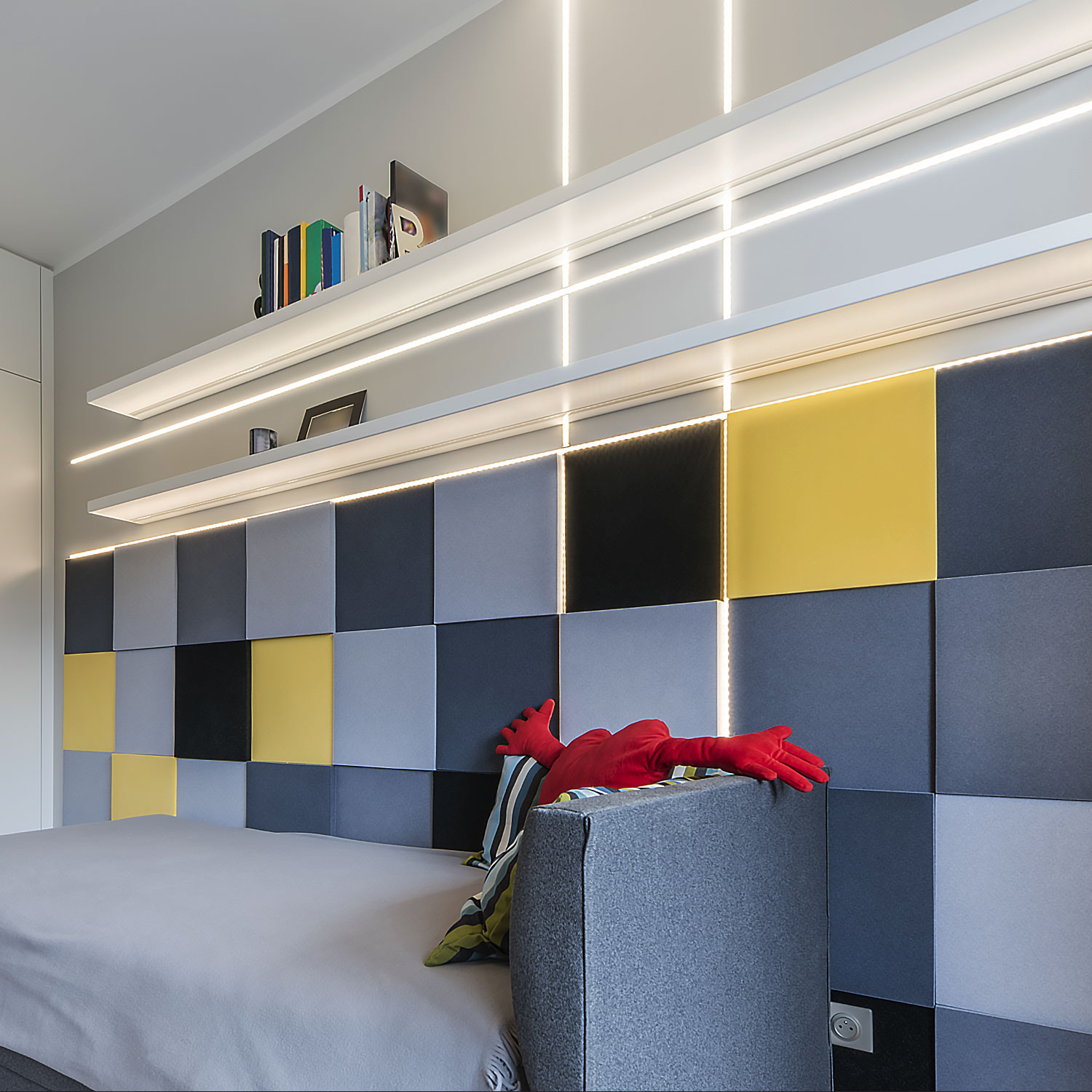

• Perfect for shelf lighting, under cabinet, etc.

* Please note: This is a product that is made to order. These units are non returnable because of this. Production time usually is 7 days, but could be more depending on current production times.
