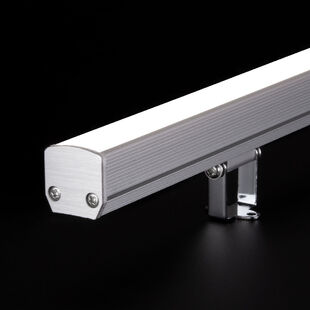

Ren LED Linear Fixture High CRI

High CRI Ren LED Linear Fixtures are the perfect solution to create accent lighting in a multitude of environments from trendy office buildings to retail environments and commercial settings. Each unit is proudly manufactured in Seattle, WA by Solid Apollo LED Inc. using the highest quality materials and electronic components.

The Ren is an LED linear fixture manufactured to order. We provide any lengths between 6 and 78 inches in 1 inch increments with a wide array of color temperatures and brightness levels. You can choose between frosted and semi-frosted diffusers giving you flexibility when designing lighting projects.

Each unit can have power leads in one or both sides allowing multiple units to be connected seamlessly. Power cables may be configured to run through the side or bottom of the fixture for ultimate installation ease. Mounting brackets are included with each order. Longer units receive more brackets in order to hold the unit effectively. The Ren's mounting brackets allow for precise control of the light output angle from the channel. The adjustable brackets can be angled anywhere within 180 degrees to project light to the desired area making this fixture perfect for display lighting as fine tuning is a breeze. The adjustable nature is also perfect for wall washing, allowing you to completely control the amount of light flooding on your chosen surface.

This fixture is an architectural grade construction with an LED strip boasting a color rendering index (CRI) of 96+ making it perfect for any environment where color rendition is important.

Main Features:

Manufactured to Order up to 78 inches:
We manufacture any length from 6 inches to 78 inches. This enables interior designers and customers to create the perfect ambiance for their space. Other manufacturers offer limited linear LED lighting systems in very short lists of sizes. Orders can take anywhere from 7 to 15 days to manufacture depending on current production times.

Adjustable Mounting Brackets:
The Ren's included brackets effortlessly angle the fixture to shine light in any direction within 180 degrees. Simply mount the fixture with the included screws and angle the linear light in the desired direction. It really is that easy.

Completely Dotless Solution:
We provide fixtures that don't show LED dotting by using proprietary diffusing materials. Our linear lighting systems feature fully diffused, smooth light that is both functional and attractive.

Fully Dimmable:
All of our linear lighting systems are fully dimmable.

ULTRA High CRI:
CRI is a measurement of the ability of a light source to accurately represent an object’s colors in comparison to natural light. 15 colors are measured on a scale of 0 to 100 with higher ratings showing surroundings and objects in more vivid and realistic colors. Traditional LEDs have CRI scores in the low 80s. Our High CRI fixtures boast averages of 96+. Even hard to render colors like vivid reds and deep blues are highly rated above 87 where other LED strips lack. High CRI strips are perfect for commercial and retail applications. Proper lighting with High CRI strips has been shown to have shown an increase in sales of two to twelve percent.

Fully Customizable:
Units can have a different diffuser with different capacities as well as different connection systems.

Power Leads:
You can choose to have power leads in one side or, if you are going to connect multiple units, both sides of the linear fixture.

How to choose your required drivers:

Solid Apollo’s linear fixtures require a driver to work (not included). It’s easy to know what driver you will need with the following instructions:

1. Count how many total inches of fixtures you have in the same line. For example: If you purchase two fixtures of 60 inches each for one line, you will have a total of 120 inches.
2. Choose which type of driver you wish to have in your setup from the selection below. Use the length of your line from step one to determine which driver to select. For example: If we wanted a plug and play driver for the 120 inch line from step one, we’d pick option three from the first section, From 97 to 192 Inches: LED Power Supply 24V-DC-4A-96W.

Normal 24V DC Drivers with Plug and Play connectors:

1. From 0 to 48 inches of total length: LED Power Supply 24V-DC-1A-24W
2. From 49 to 96 inches of total length: LED Power Supply 24V-DC-2A-48W
3. From 97 to 192 inches of total length: LED Power Supply 24V-DC-4A-96W

24V DC Drivers with Hardwire installation:

1. From 0 to 120 inches of total length: Hard Wired LED Power Supply 24V-DC-60W
2. From 121 to 200 inches of total length: Hard Wired LED Power Supply 24V-DC-100W

Dimmable 24V DC Drivers:

1. From 0 to 100 inches of total length: Dimmable LED Transformer 50W 24V DC
2. From 101 to 190 inches of total length: Dimmable LED Transformer 96W 24V DC

If your installation requires larger drivers, give us a call and we will be happy to recommend the right product that fits your needs.

In a Nutshell:

• 96+ CRI
• 0.75in (W) x 0.8in (H)
• Up to 596 Lumens/ft
• Available from 6 to 78 Inch lengths (1 inch increments)
• Made to Order
• Manufactured in the USA
• Completely Dotless with Frosted Diffuser
• Fully Dimmable
• 5 Year Warranty
• Available in 2400K, 2700K, 3000K,
  3500K, 4000K, 5000K, and 6000K
• Up to 20ft Continuous Runs
• Strain Relief built into cables
• Easy to install
• Includes Mounting Brackets
• 180-Degree Angle Adjustability
• Perfect for shelf lighting, under cabinet, wall washing, etc.

* Please note: This is a product that is made to order. These units are non returnable because of this. Production time usually is 7 days, but could be more depending on current production times.
