ProAV 4 Channel DMX to RGB-W LED Decoder

Solid Apollo's ProAV 4 Channel DMX to RGB-W LED Decoder is an excellent affordable choice for lighting and video professionals who require a smooth color changing effect without a noticeable refresh rate. It converts DMX512 signal to RGB-W and it is highly configurable with several adjustable settings.

Thanks to the LED Numeric Display Screen, these settings can be easily adjusted to give you the best output for your application. The settings include:

• DMX address setting that can be selected from 001 to 512.
• Output frequency setting of 200Hz or 1500Hz (perfect for flicker-free performance)
• Output dimming option to select between linear and logarithmic dimming.
• Channel setting that lets you combine Output Channels.

In addition to numerous adjustable settings of the decoder, this heavy-duty DMX512 decoder is constructed with a sturdy metal housing that has mounting tabs on each side for a secured installation. The output screw terminals are robustly designed to carry a whooping 8A load each, giving the decoder the ability to drive up to 768W at 24V DC and 384W at 12V DC.

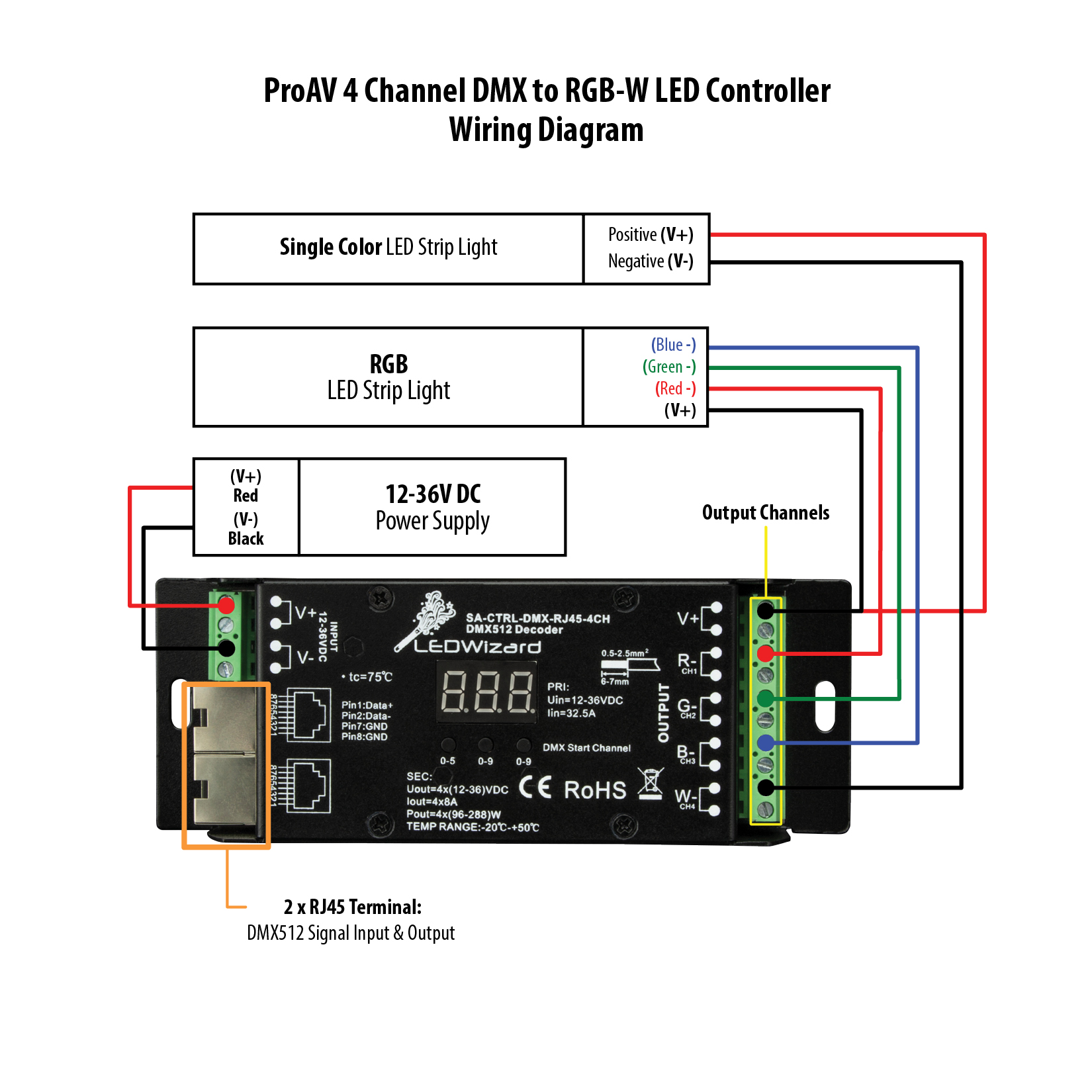

Designed for easy connectivity with an RJ45 input/output port, it is easy to daisy chain (inter-connect) multiple decoders together or connect the decoder to a DMX Console using an adapter such as Solid Apollo's RJ45-XLR Adapter.

Main Functions:

• Converts DMX512 Signal to RGBW
• RJ45 Input / Output Ports for Easy Cascading with Multiple Controllers
• Quality Metal Housing with Built-in Mounting Tabs for Easy Installation
• Crisp LED Numeric Display Screen with Buttons for Easy Configuration
• Fully Functional On a Wide Voltage Input Range of 12V to 36V DC
• Powerful 4 X 8A Output Channels that Drive up to 384W at 12V DC and 768W at 24V DC
• Output Refresh Rates of 200Hz and 1500Hz, The 1500Hz Gives a Flicker-Free Performance
• Ability to Merge all Output Channels Into One or Set Them To Use Separately
• Linear and Logarithmic Dimming Options to Choose for Your Application
• Easily Daisy-Chainable with Amplifiers to Create an Unlimited Output
