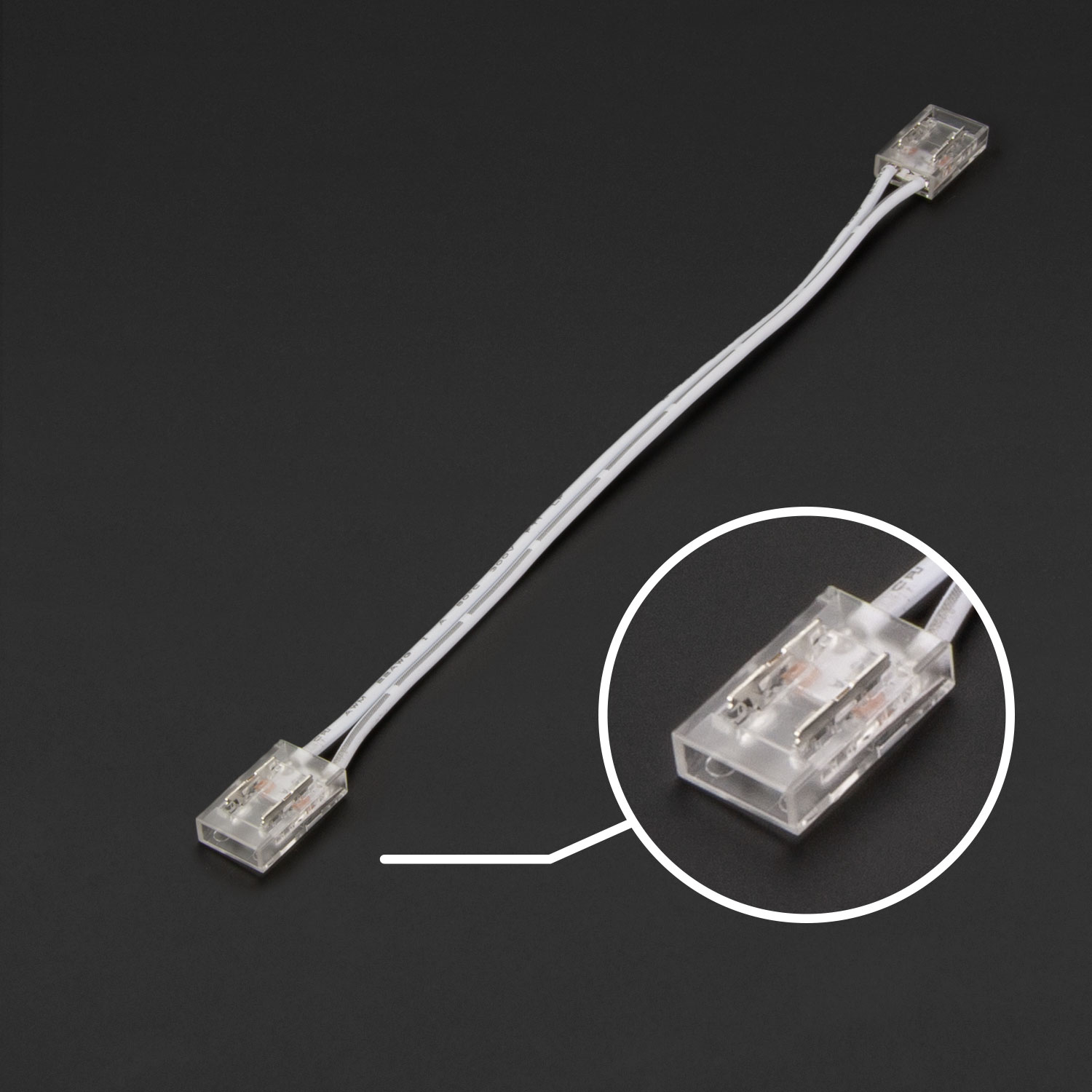

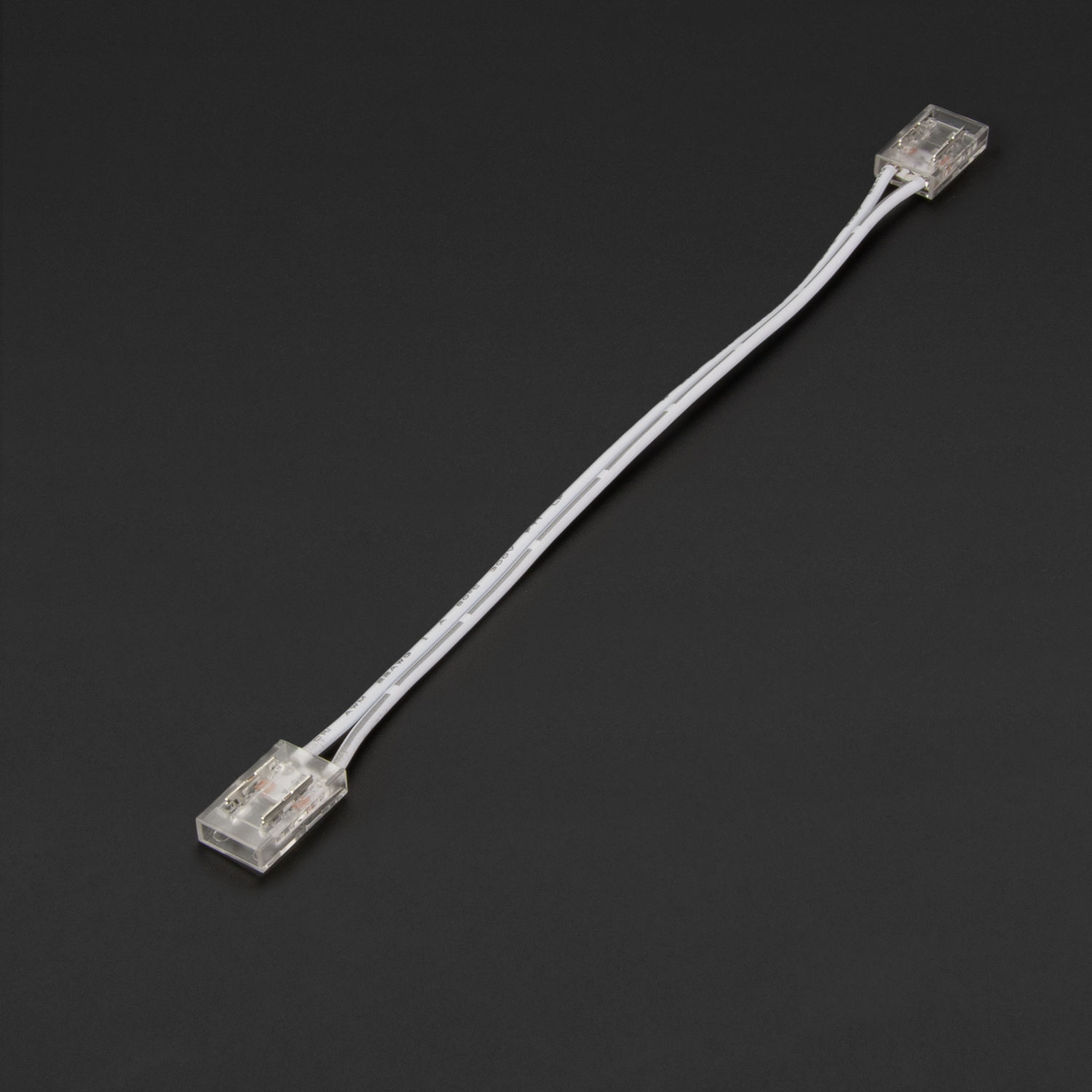

8mm Clampdown LED Strip Interconnector

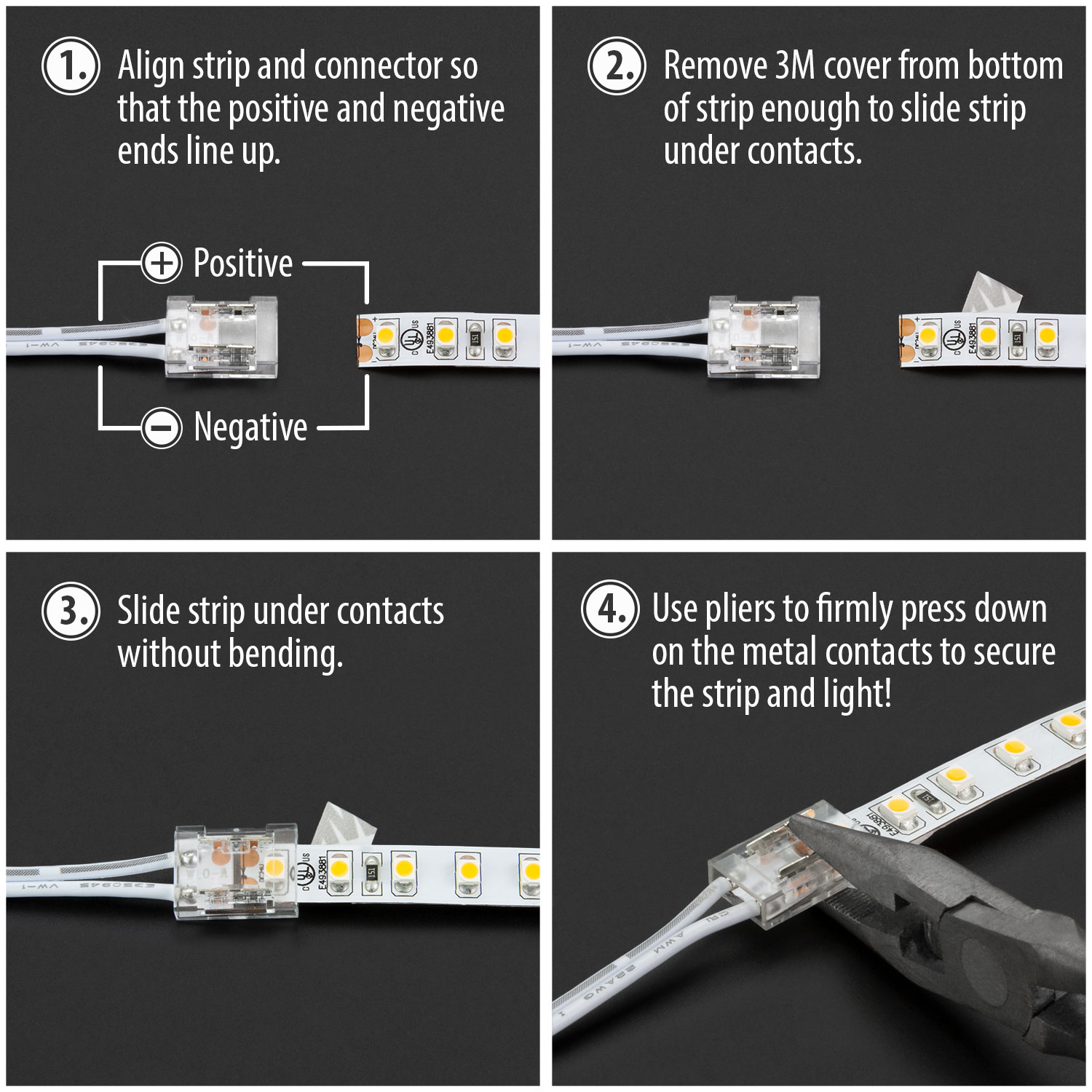

Solid Apollo's 8mm Clampdown LED strip interconnector is a useful accessory for connecting two 8mm LED strips without soldering. Installation is quick and simple with easy to use clampdown terminals. Simply peel the adhesive backing on the LED strips, align strips' positive and negative ends to the connector, insert the strips, and press down firmly on the terminals with pliers to create a strong, permanent connection.

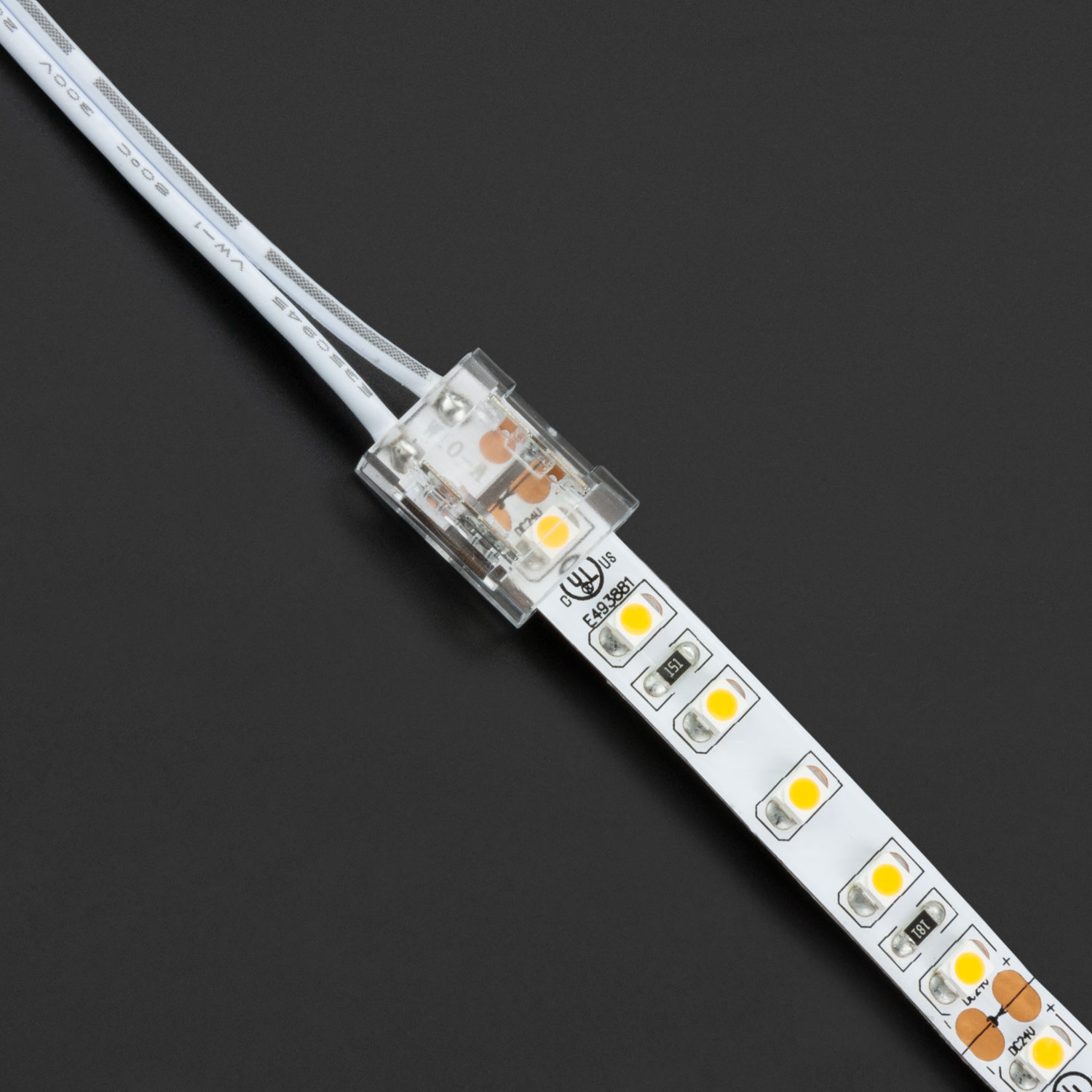

The transparent connector heads are designed to allow LED nodes to fit inside the heads without obscuring any light making this connector perfect for high density strips. The clampdown terminals puncture through the printed circuit board forming a secure and permanent connection that can withstand pulls and tugs, perfect for making connections around corners and other obstacles. With its ultra-low profile, this connector can fit in channels 12mm wide or larger allowing expansive project customization.
Please Note: This connector forms a permanent connection. Confirm the LED strips are properly inserted and aligned before securing the clampdown terminals.
Main Features:
- Great for High Density LED Strips

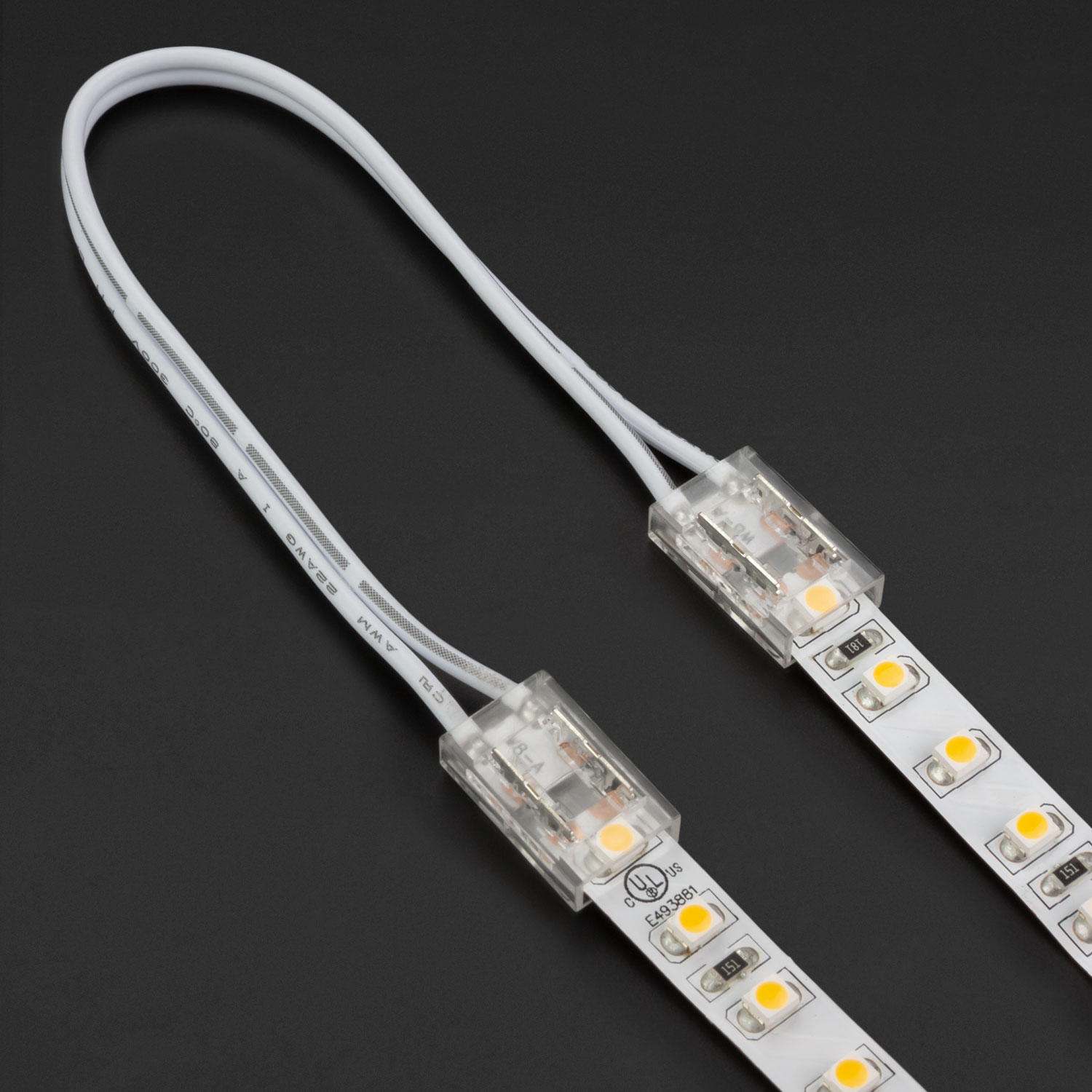

- Easily Connect Two 8mm LED Strips
- Perfect for Going Around Corners
- Creates Strong, Permanent Connections
- Transparent Connector Heads
- Ultra-low Profile
- Fits Channels 12mm Wide or Larger

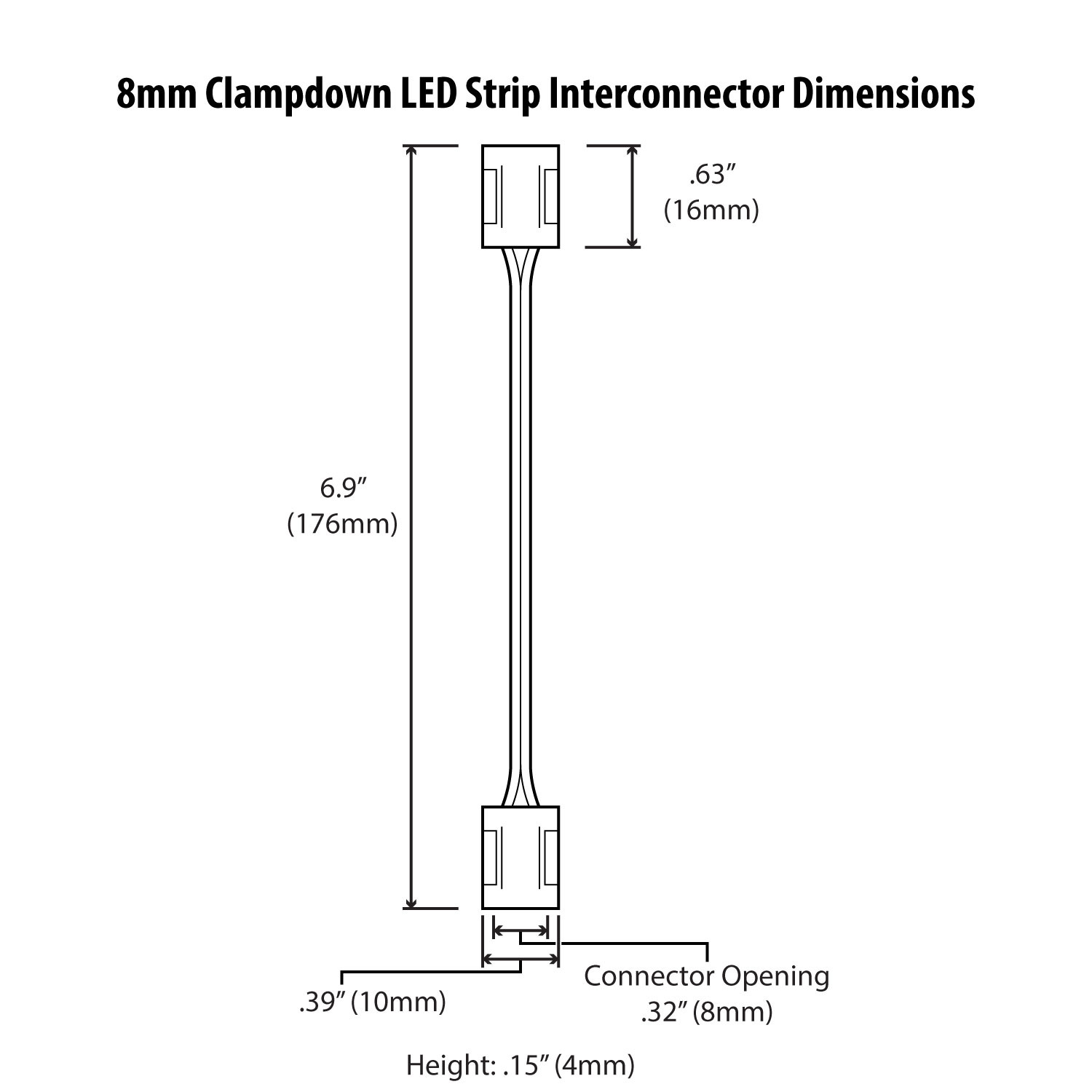

- 6.8in in Total Length
Input Voltage | 12 or 24V DC | |
Max Amp | 5A | |
Warranty | 3 Years | |
Weight | 0.01 Lbs | |
Dimensions | 6.8in Total Length | |
IP Rating | IP33 |
