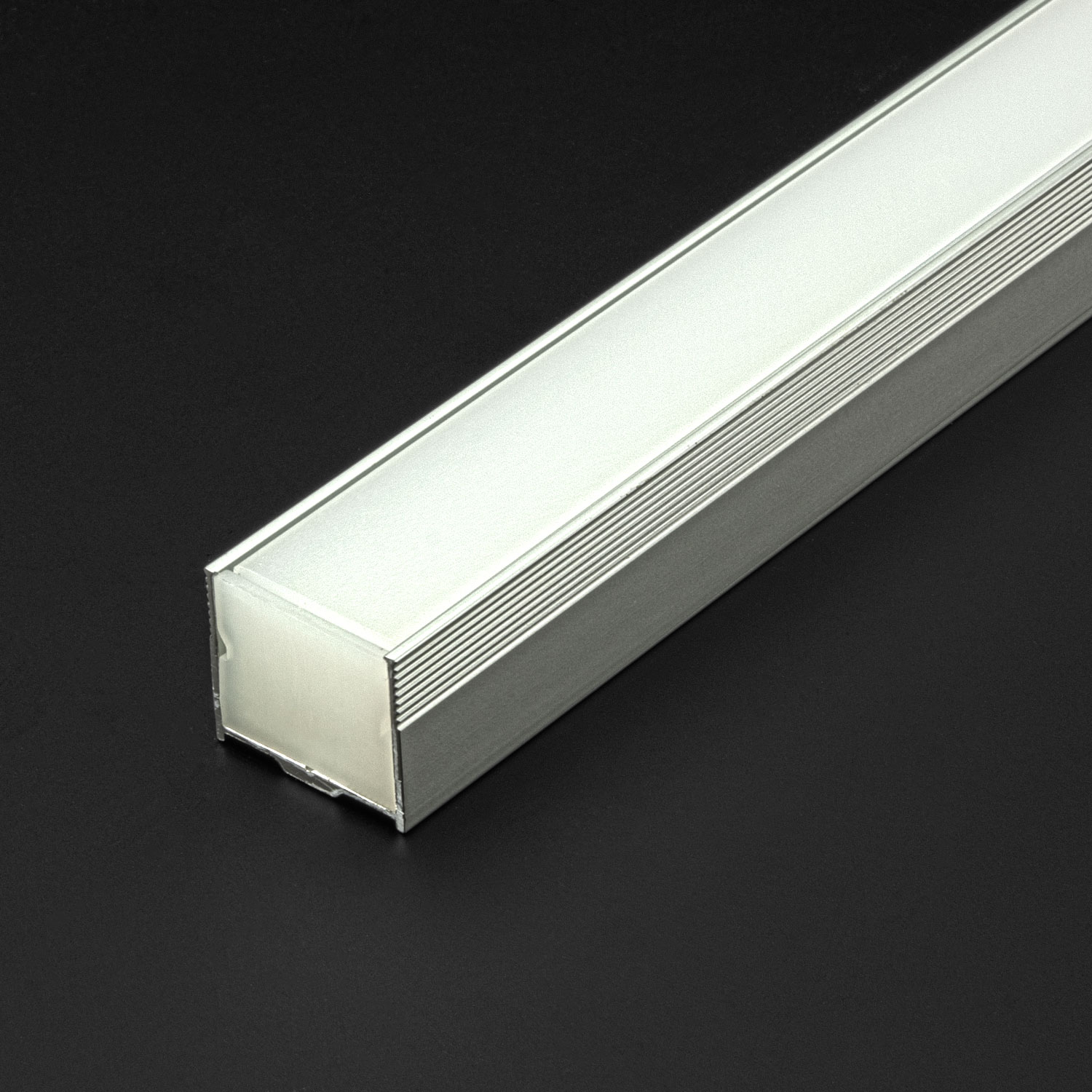

78" N17 NeonizerPro LED Strip Channel
Note: When installing, leave .25" of free space on each side of the channel to allow for the natural expansion of the unit when in use.
Solid Apollo’s N17 NeonizerPro Waterproof Channel is an excellent linear lighting solution that uses off-the-shelf LED strip lights to create beautiful neon effects. With this channel, you can use any high-density LED strip light such as Solid Apollo’s Hi-CRI and double-row LED Strip Lights to produce neon light effects that are similar from traditional glass neon light.
The N17 Neonizer Pro works with LED strip lights that are 17mm wide or less. It is designed with an anodized aluminum exterior housing on an extruded PMMA (Polymethyl Methacrylate) channel that has a thick milky diffuser. Thanks to this built-in diffuser, the channel is able to create a spotless solid line of light similar to neon when used with LED strip lights that have densely placed LEDs.
The anodized aluminum provides protection from environmental elements and prevents rust and corrosion of the channel.
Installation of the ProNeonizer is very simple. It comes with a 17mm wide aluminum plate for easily mounting and installing LED Strips. It also includes endcaps which can be waterproofed with silicon sealant for outdoor or wet location usage. The bottom of the channel has a thick central ridge that is ergonomically designed for easy countersinking of screw heads during installation.
To achieve a perfect waterproof LED channel, use our Waterproofing compound (Sold Separately) and apply generously in the endcaps.
Product Features:
- 78” length
- Fits LED Strip Lights 17mm Wide or Less
- IP67 Waterproof
- Easily Cuttable to Any Length
- Creates Beautiful Neon Effect
- Built-in Milky Light Diffuser
- Quality Anodized Aluminum and PMMA Construct
Note: LED Strip Light, optional end-caps, mounting brackets and waterproofing compound are not included with the product.
Note: Get best results using an LED Strip Light with densely placed LED chips.
LED Strip Width | Max 17mm- Not Included | |
Warranty | 3 Years | |
Weight | 2.35 lbs | |
Dimensions | 78"L x 0.94"W x 0.78"H | |
IP Rating | IP65 with wateproofing compound | |
Product Material | Aluminum and PMMA | |
Working Temperature | -30ºF to 130ºF | |
Certificates | CE, RoHs |
- Architectural Design
- Retail and Restaurant Design Accents
- Place at the base of walls or toe-kick
- For framing accents using miter joints
-
Anywhere a smooth neon effect is needed with Solid Apollo’s Neonizer Channels.
