12mm RGBW Snap&Light LED Strip T Connector
The 12mm RGBW Snap&Light LED Strip T Connector for RGBW LED strips can easily connect up to 3 12mm LED strips together in a T-shaped configuration without needing to solder the LED strips. The T-shape of the connector connector is great for both changing the angle of the LED strip light installation and creating two outputs from one.
Product advantages:
- Easily connect up to three 12mm RGBW LED Strips together
- No soldering required
- Can be used as a joiner or 90 degree angle changer.
Installation:

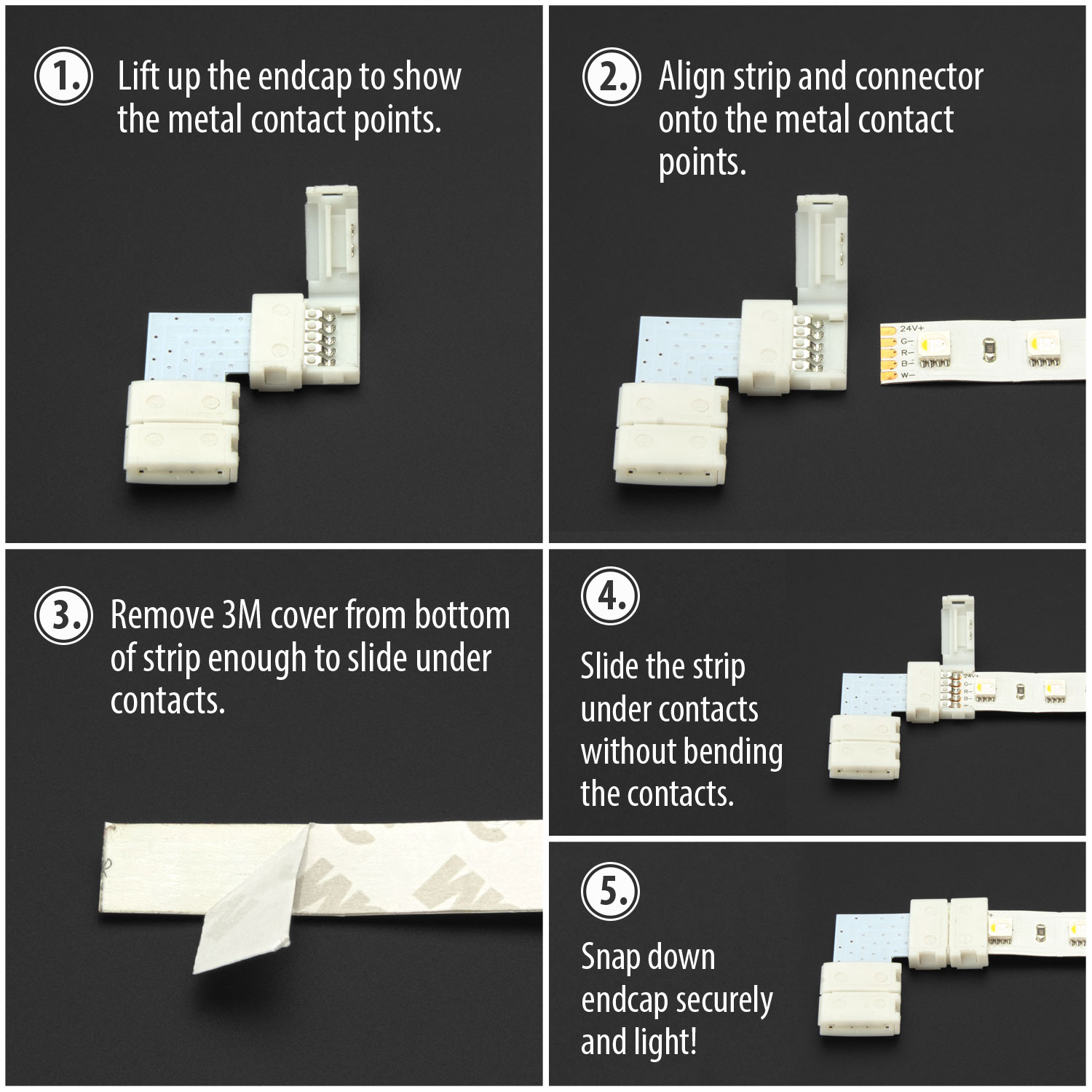

- Each end of the connector has a white tab that snaps up, revealing a plastic slot to slide the RGBW 12mm LED strip into.
- Peel the double sided tape from the LED strips and insert the led strips facing up (See Product Pictures or Diagram tab for reference)
- Gently push down the white tab until you feel a snap for a secure connection.
Product sold by the unit.
Input Voltage | 12 to 36V DC | |
Max Power | Max 5A | |
Warranty | 3 Years | |
Weight | 0.001 Lbs | |
Dimensions | L: 2" x W: 1.30" x H: 0.20" | |
IP Rating | IP33 | |
Product Color | White Connector | |
Working Temperature | 32-170F | |
Certificates | CE-Rohs |
The 12mm RGBW Snap&Light LED Strip L Connector is applicable for the following RGBW LED Strips :
