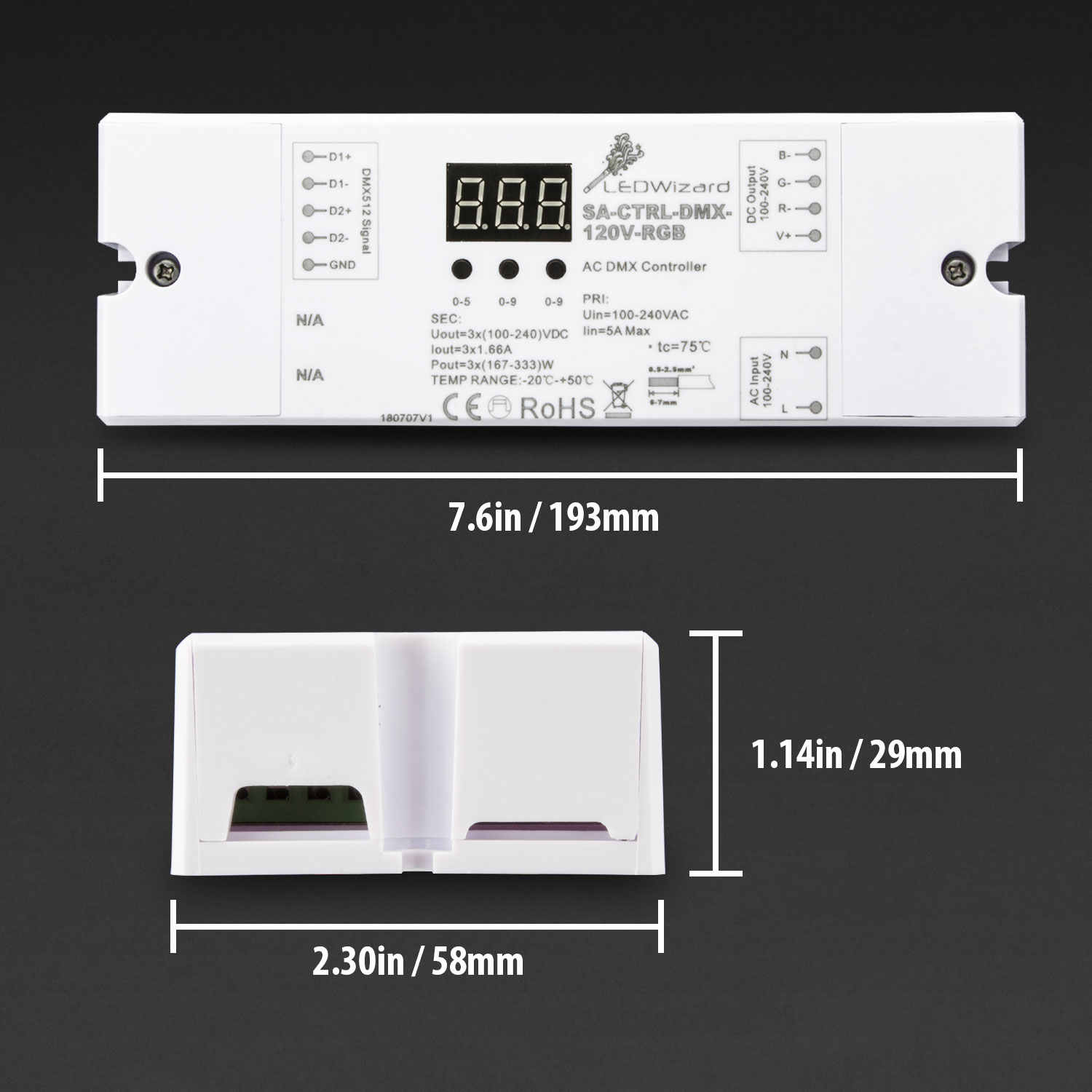

120V AC DMX to RGB LED Decoder

Solid Apollo's 120V AC DMX to RGB LED Decoder is an advanced device that converts DMX signal to RGB. It is the perfect choice for controlling 120V LED fixtures such as Solid Apollo's RGB Flex Neon LED Strip Light and Driverless RGB LED Strip Light through DMX.

This controller has two operational modes - DMX Control and Stand Alone modes. Thanks to a built-in numeric display screen, you can easily select the operation mode and adjust the settings in each mode to suit your application.

• DMX Control Mode
  The DMX Control mode works in conjunction with any DMX control system to control RGB LED fixtures. The controller has two DMX signal terminals for easily connecting a DMX System such as Solid Apollo's  LEDMotion 512, DMX LEDMotion Stand Alone 512, DMX Boss Wi-Fi Controller, and more; and also daisy chaining multiple controller units.

• Stand Alone Mode
  This is an auto program mode that enables the controller to run preset internal programs if an external DMX control system is not available. This mode is also useful for testing, to confirm that DMX setups and connections work properly prior to installing extensive DMX systems. The preset programs in the stand alone mode include:
  • 9 static colors to select from (Red, Orange, Yellow, Green, Teal, Blue, Pink, Yellow, and White)
  • 8 brightness levels
  • 9 speed adjustments
  • 10 color-changing scenes with various fading or flashing effects

Compared to other DMX to RGB controllers in the market, this decoder operates at high voltage (100V - 240V AC) and does not need any transformer for powering. It can safely and directly be connected to the standard 120V AC line and it can drive up to 600W at 120V AC.

Main Functions:

• Converts DMX Signals to RGB
• Operates at 100V to 240V AC
• Can be connected directly to any 120V AC line
• Drives up to 600W at 120V and 1200W at 240V DC
• User-friendly numeric display
• DMX in and out terminals
• DMX address settable from 1 to 512
• Dual functional modes:
  • DMX Control Mode – works as a decoder with DMX System
  • Stand Alone Mode – Controls RGB fixtures with preset internal programs
